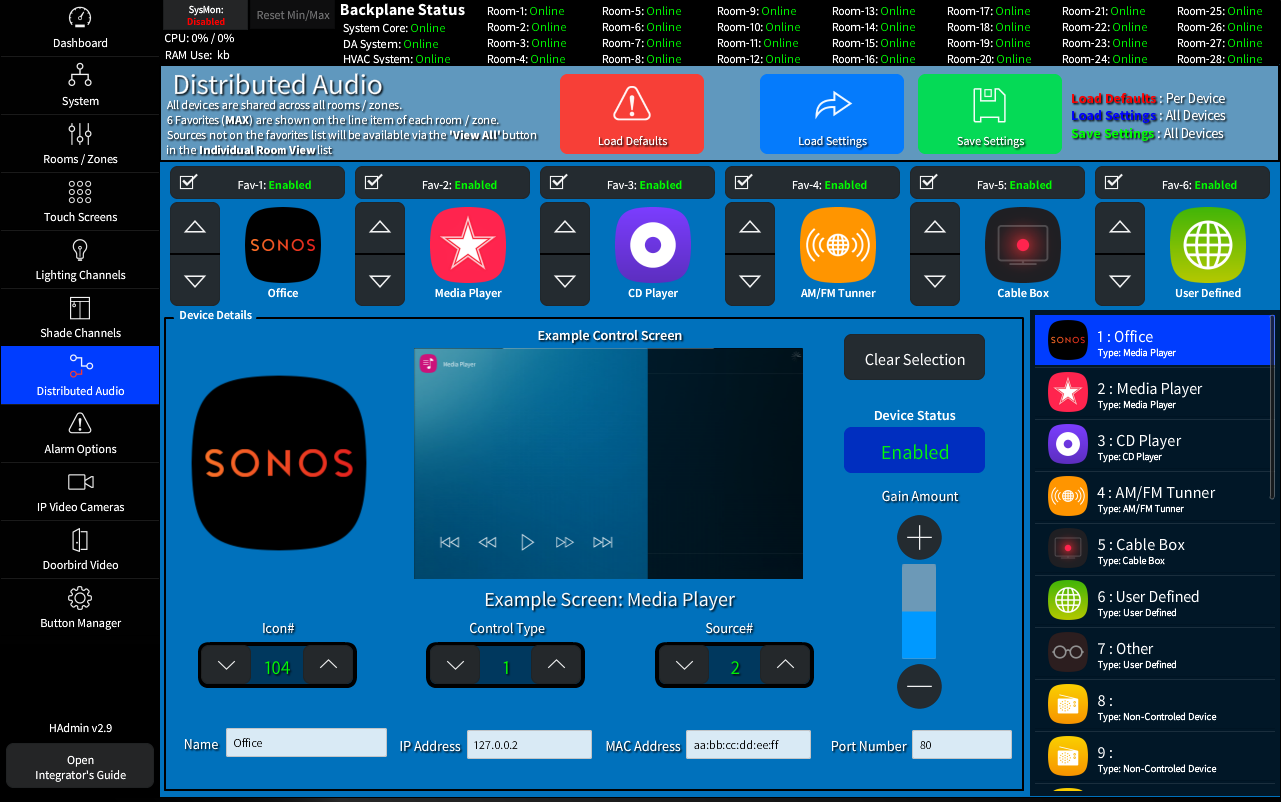

The Distributed Audio page allow you to configure up to 24 shared devices.
6 of these devices can be assigned to quick access favorites with a 'View All' button that becomes available on the user Touch Screen when there are 7 or more sources configured.
Note: There are several built in device control screen type and more can be added if needed,
See: The Interface Project Guide for full details on adding custom control screens.

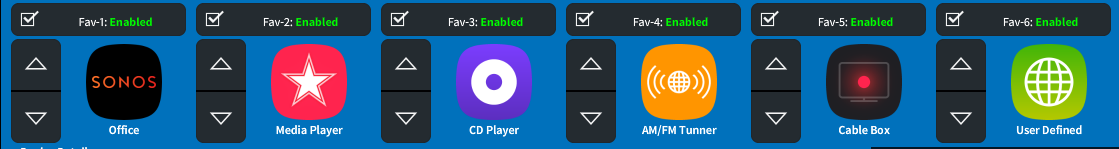

You can assign up to 6 of the configured devices as 'Favorites' that will offer quick access to them on the user touch panels.

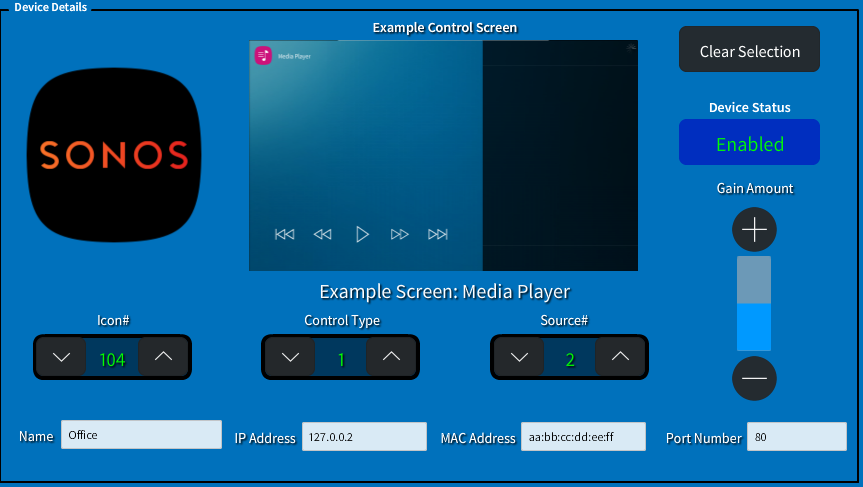

The Base settings allow you to set the Default options for the channel.

• Select an icon to display on the User Touch Screens
• The Control Type defines the functionality of of the device and sets the displayed control screen.
• The Source ID# is an analog signal that will populate to the Amp when this device is selected.
• The Gain amount is represented as a Singed value so you can set positive or negative gain. Scalers should be used in the driver pack to integrate the amplifiers expected values.
